Overview

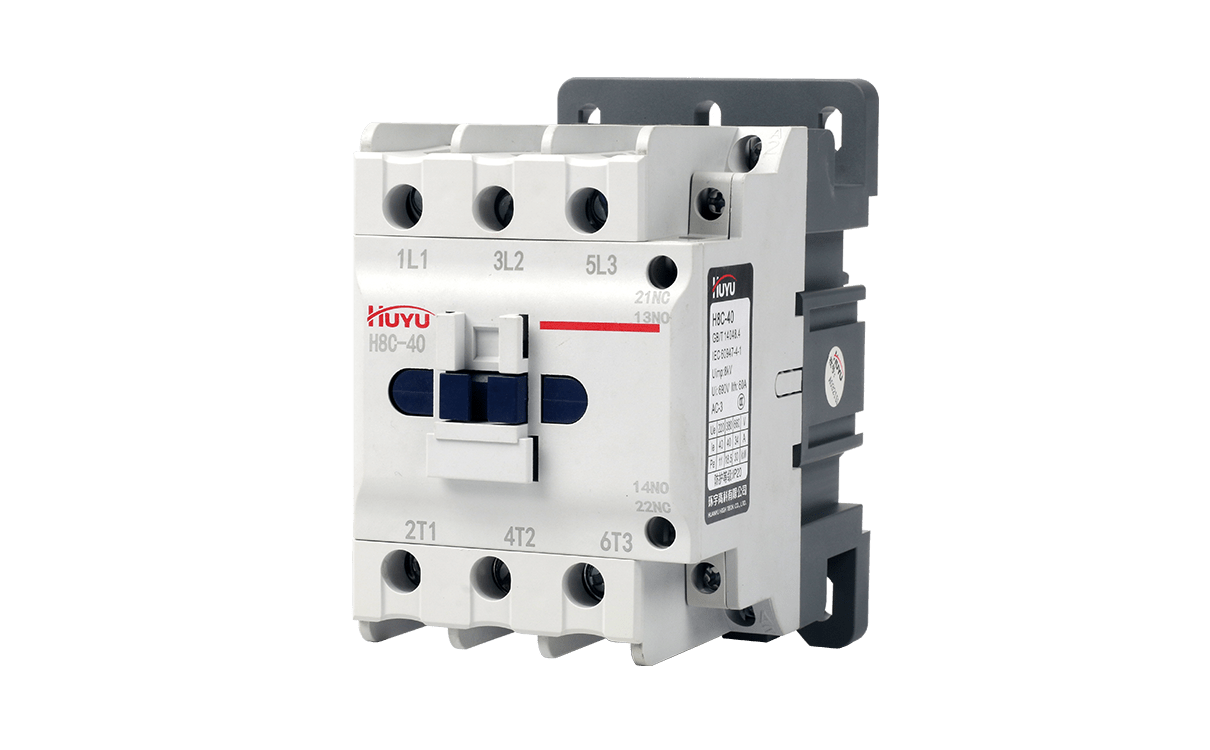

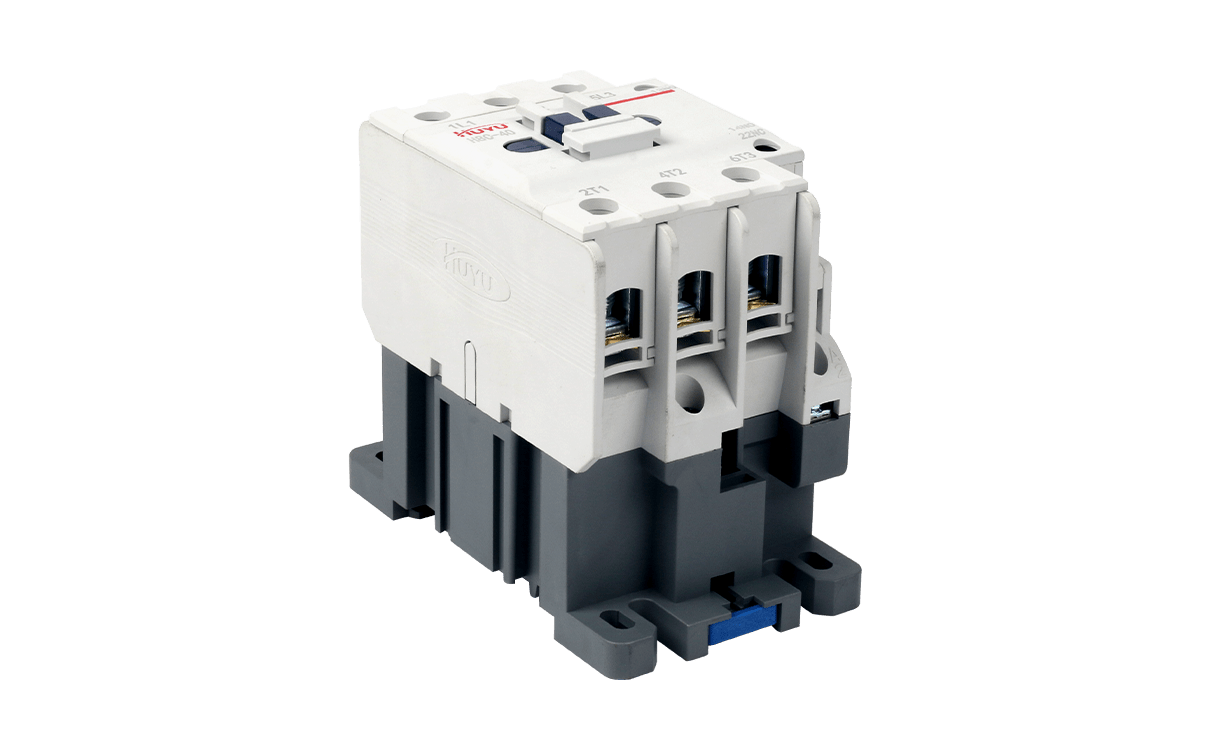

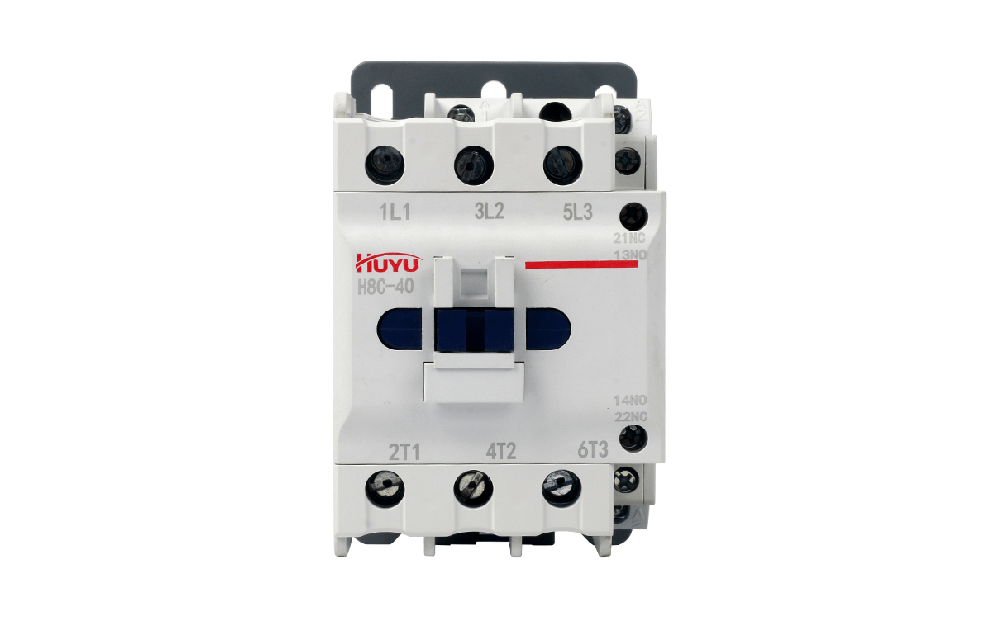

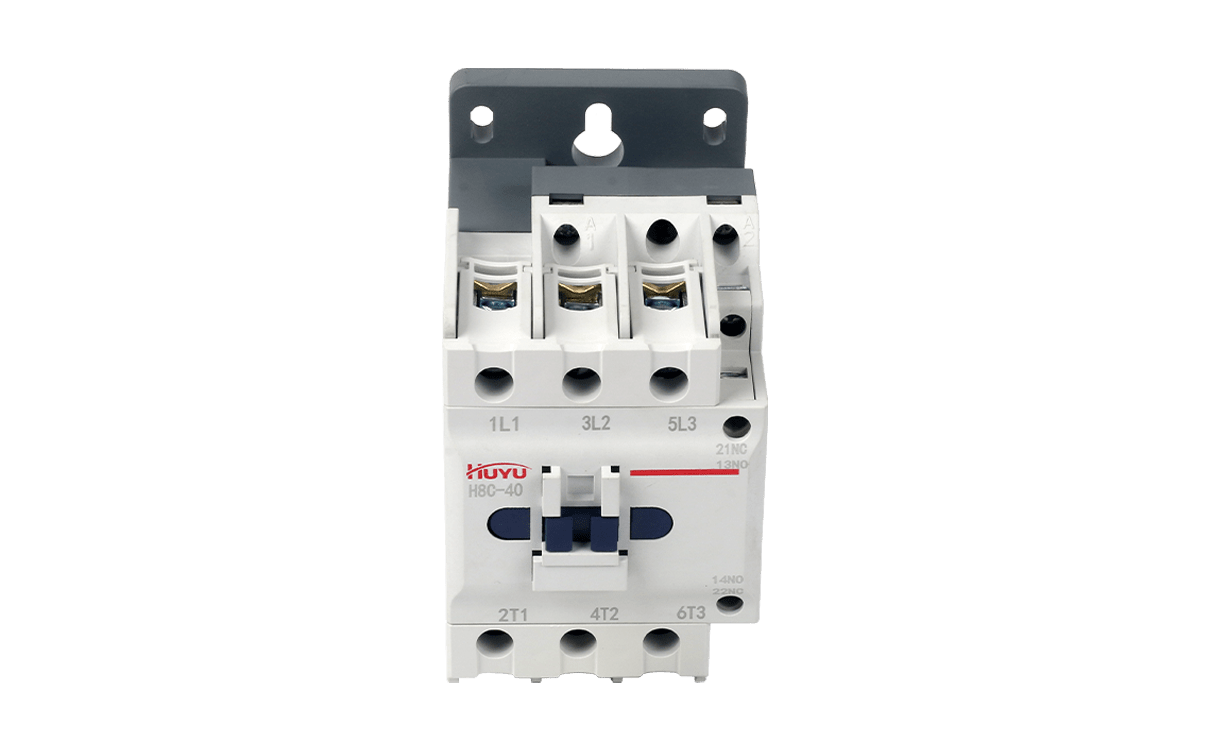

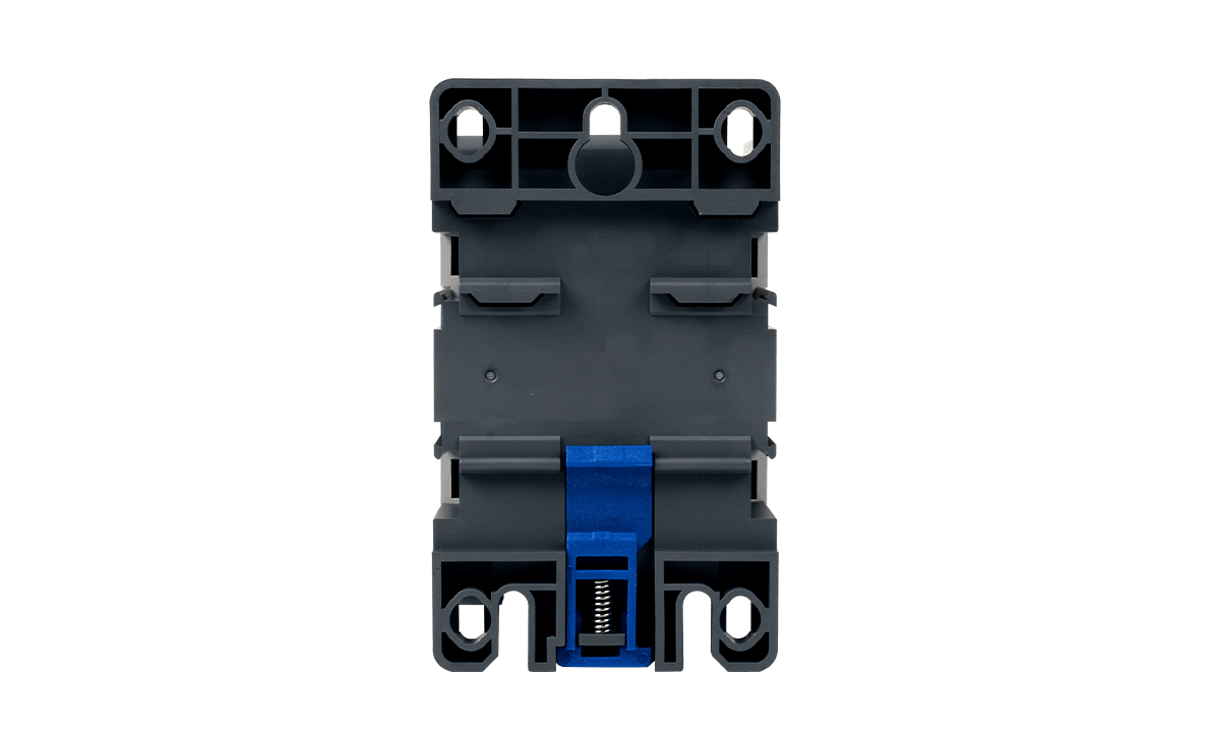

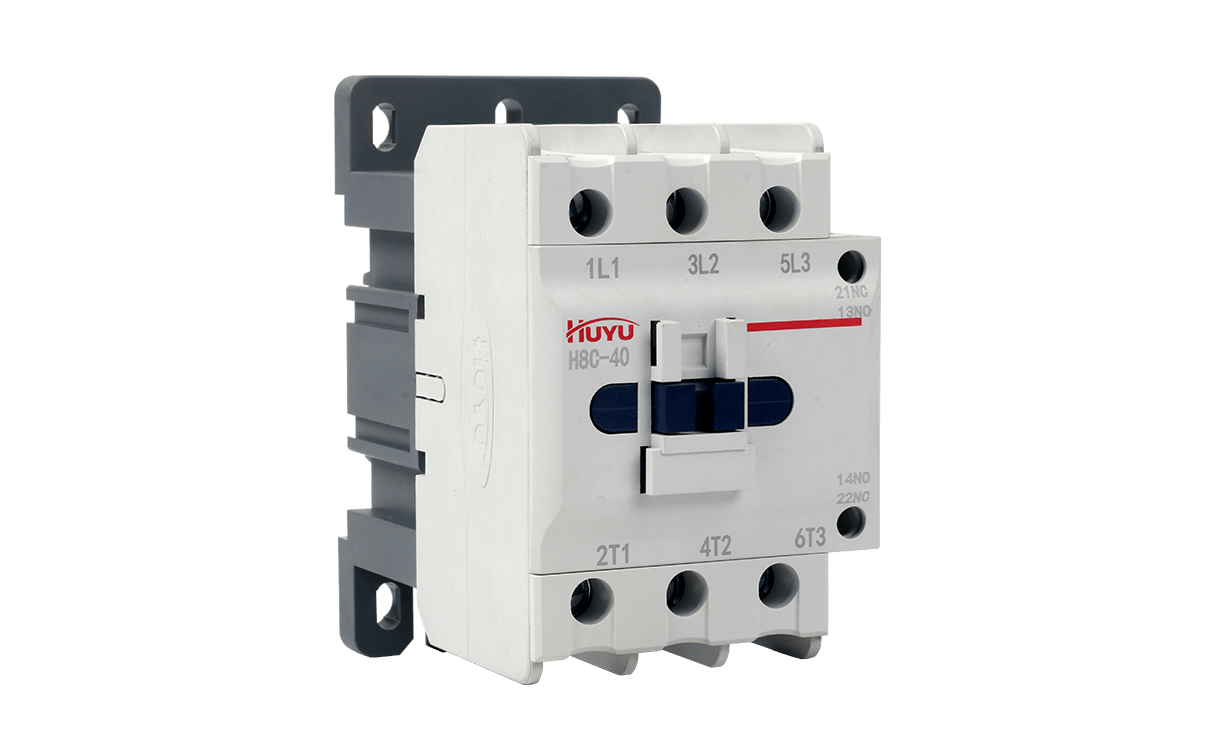

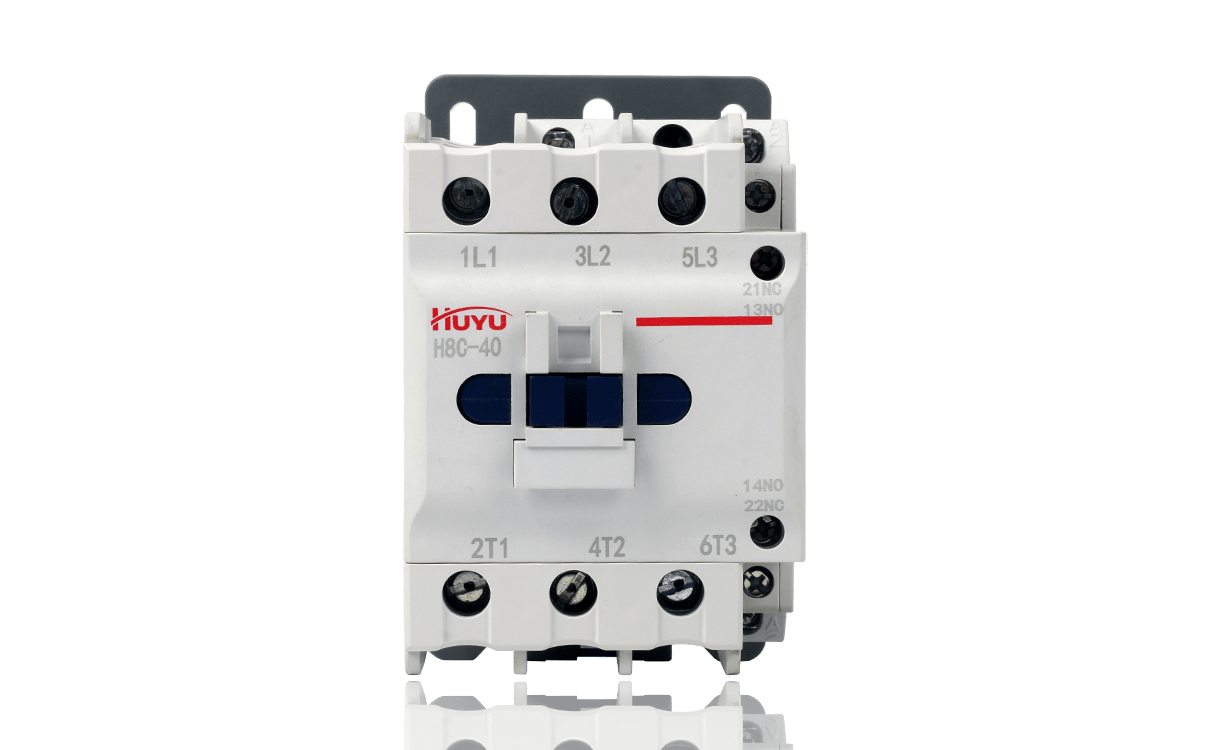

The H8C series AC contactor is mainly applied to the circuit of AC 50Hz/60Hz, rated voltage up to 690V, and to the circuit with 380V load, rated current up to 95A in AC-3 using category. It is used for remote making and breaking circuits, and can also be used with proper thermal

overload relay together as an electromagnetic starter to protect circuits from overload.

This product conforms to standards IEC 60947-4-1.

Normal working conditions

1. Ambient temperature: -5 ~+45. Average temperature within 24h: +35

2. Altitude: 2000m

3. Humidity: The air relative humidity under the highest temperature +40 cannot surpass 50%;

Under the lowest temperature has a higher relative humidity, the wettest month' average lowest

temperature cannot surpass +25, and the average relative humidity cannot exceed 90%;

4. Pollution degree: class 3

5. Mounting category: III

6. Mounting condition: inclination between mounting plane and vertical plane not exceeds 5

7. No obvious shake and impact in mounting site.

8. Transportation and storage: During transportation the contactor should not be subjected to severe collisions and vibrations, neither attacked by rain / snow in any time. Contactor is suitable for transportation and storage at temperatures range from -25°C ~ +55°C, can up to +70°C in a short time (within 24h).
